THREE UNWINDER & THREE REWINDER STACK FLEXO MACHINE

THREE UNWINDER & THREE REWINDER STACK FLEXO MACHINE

The flexographic machine with three unwinders and three rewinders is an excellent tool for the production of high-quality work in large quantities. This type of machinery is characterized by its high performance and efficiency, as well as the ability to print on a wide variety of materials and formats.

TECHNICAL SPECIFICATIONS

Model CH4-600H CH4-800H CH4-1000H CH4-1200H
Max. Web value 650mm 850mm 1050mm 1250mm
Max. Printing value 600mm 800mm 1000mm 1200mm
Max. Machine Speed  120m/min
Printing Speed  100m/min
Max. Unwind/Rewind Dia. φ800mm
Drive Type  Timing belt drive
Plate thickness  Photopolymer plate 1.7mm or 1.14mm (or to be specified
Ink  Water base ink or solvent ink
Printing length (repeat)  300mm-1000mm
Range Of Substrates LDPE; LLDPE; HDPE; BOPP, CPP, PET; NylonPAPERNONWOVEN
Electrical supply  Voltage 380V. 50 HZ.3PH or to be specified

Machine Features

1.The three-unwinder&three-rewinder stacked flexographic machine is a high-quality and efficient tool for printing on different types of flexible materials. This machine has several exceptional features that make it stand out among other machines on the market.

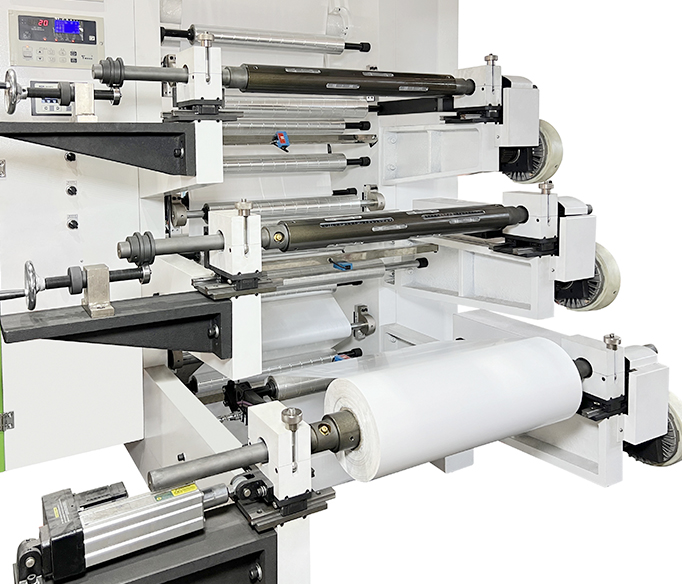

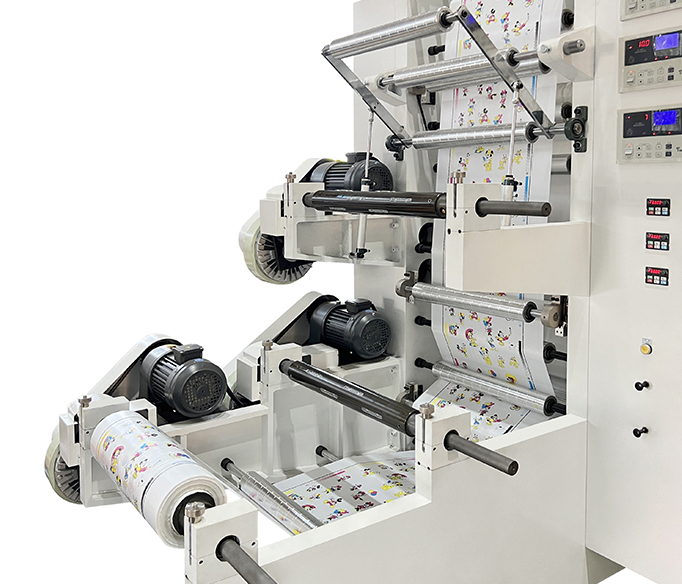

2.Among its features, we can mention that this machine has a continuous and automated feeding of the materials, thus minimizing downtime and increasing productivity in the printing process.

3.In addition, it has a high-precision registration system that ensures excellent print quality and minimizes material and ink losses.

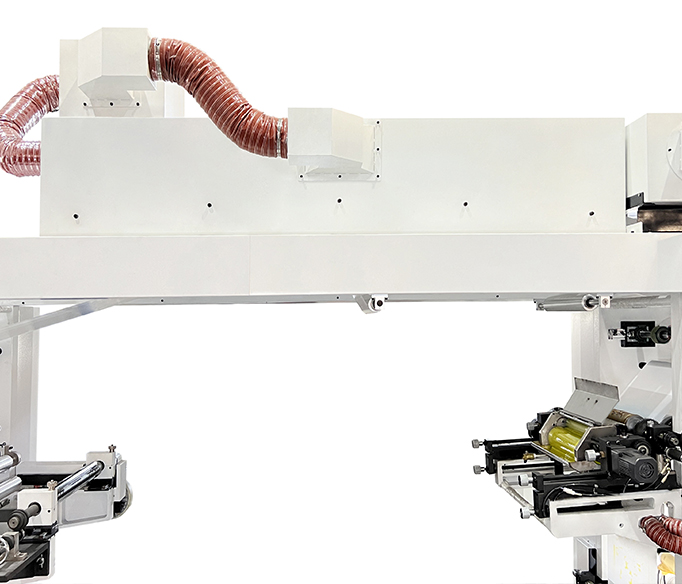

4.This machine also features a quick-drying system that allows for higher performance and faster printing speeds. It also has a cooling and temperature control function to maintain registration and print quality at all times.

  • High efficiencyHigh efficiency
  • Fully automaticFully automatic
  • Wide range of materialsWide range of materials
  • Eco-friendlyEco-friendly
  • 样品-1
    样品-2
    样品-3
    样品-4
    样品-5
    样品-6

    Sample display

    Servo stack flexo printing machine has a wide range of application materials and is highly adaptable to various materials, such as transparent film, non-woven fabric, paper, paper cups etc.
