INLINE FLEXOGRAPHIC PRINTING FOR PAPER BAG

INLINE FLEXOGRAPHIC PRINTING FOR PAPER BAG

CH-A Series

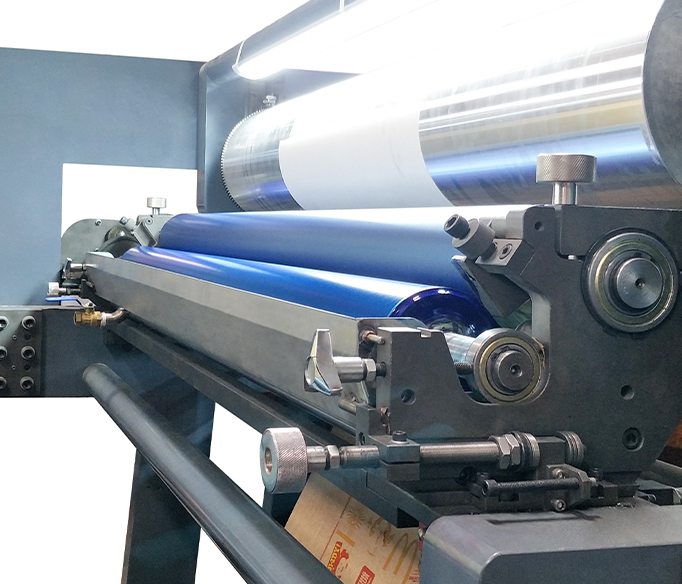

Each printing group of the Inline flexo press is arranged horizontally and linearly independently, and a common drive shaft can be used to drive the Inline flexo printing machines. This series of flexo printing machines can print on both sides. Suitable for printing on paper materials.

TECHNICAL SPECIFICATIONS

Model CH6-1200A
Maximum winding and unwinding diameter ф1524
Inner diameter of paper core 3″OR 6″
Maximum paper width 1220MM
Repeat length of printing plate 380-1200mm
Plate thickness 1.7mm or to be specified
Thickness of plate mounting tape 0.38mm or to be specified
Registration accuracy ±0.12mm
Printing paper weight 40-140g/m2
Tension control range 10-50kg
Maximum printing speed 100m/min
Maximum machine speed 150m/min
  • Machine Features

    1.The flexo printing machine can perform double-sided printing by changing the conveying route of the substrate.

    2.The printing material of the printing machine is a single sheet of paper, kraft paper, paper cups and other materials.

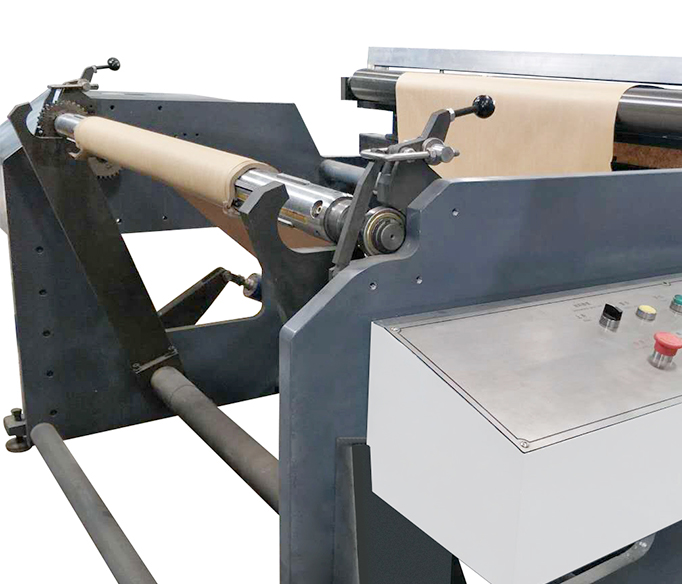

    3.The raw paper unwinding rack adopts single-station air expansion shaft automatic unwinding method.

    4.The tension is taper control technology to ensure the accuracy of overprinting.

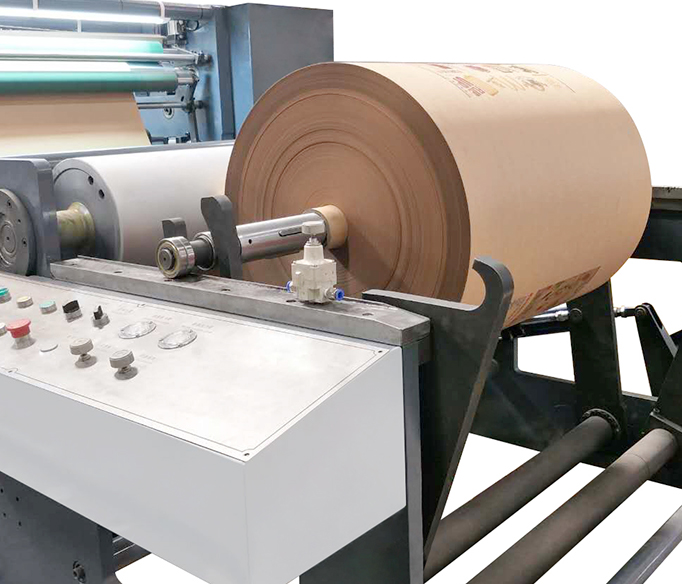

    5.The winding is driven by a motor, and the floating roller structure realizes closed-loop tension control.

  • High efficiencyHigh efficiency
  • Fully automaticFully automatic
  • Eco-friendlyEco-friendly
  • Wide range of materialsWide range of materials
  • 1
    2
    3
    4
    5

    Sample display

    Inline flexo printing machines has a wide range of application materials and is highly adaptable to various materials, such as paper, paper cups etc.
