GEARLESS FLEXO PRINTING PRESS FOR PAPER CUPS

CHCI-F Series

One of the most notable features of the PAPER gearless flexo printing press is its high-speed printing capabilities. With its advanced gearless technology, this printing press is capable of producing prints at an incredible speed. In addition to its speed, the PAPER gearless flexo printing press is also renowned for its flexibility.this printing press is versatile enough to handle all your printing needs. It can even print on a wide range of substrates, from Paper Cup,Non Wovenand plastic.

TECHNICAL SPECIFICATIONS

Model	CHCI-600F	CHCI-800F	CHCI-1000F	CHCI-1200F
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	520mm	720mm	920mm	1120mm
Max. Machine Speed	500m/min
Printing Speed	450m/min
Max. Unwind/Rewind Dia.	φ1500mm ( Special size can be customized)
Drive Type	Gearless full servo drive
Plate thickness	Photopolymer plate 1.7mm or 1.14mm(or to be specified）
Ink	Water base ink or solvent ink
Printing length (repeat)	400mm-800mm (Special size can be cutomized)
Range Of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Paper, Nonwoven
Electrical supply	Voltage 380V. 50 HZ.3PH or to be specified

flexo printing machine， flexographic printing machine ，flexographic printing press， flexo machine， machine flexo ，flexographic printer ，ci flexo printing machine ，drum flexo printing machine

Machine Features

1.Servo-driven motors: The machine is designed with servo-driven motors that control the printing process. This allows for better accuracy and precision in registering the images and colors.

2.Automated registration and tension control: The machine is equipped with advanced registration and tension control systems that help in reducing waste and increasing productivity. These features ensure that the printing process runs smoothly and efficiently.

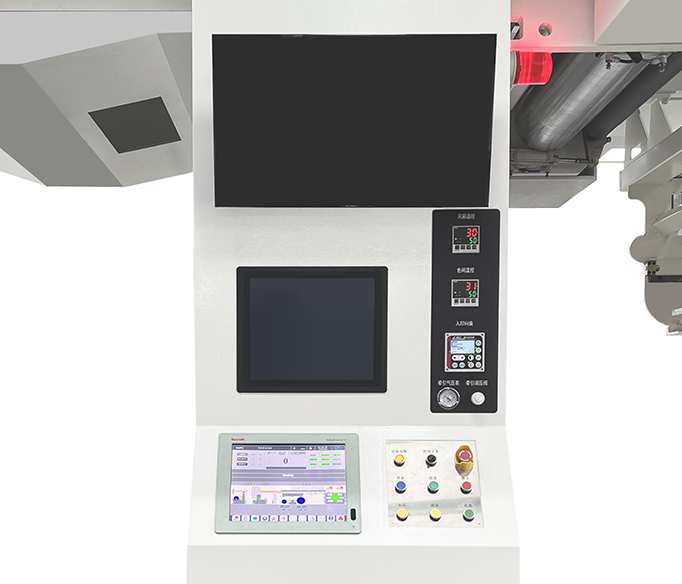

3.Easy to operate: It is equipped with a touch screen control panel that makes it easy for operators to maneuver and make adjustments during the printing process.

High efficiency

Fully automatic

Eco-friendly

Wide range of materials

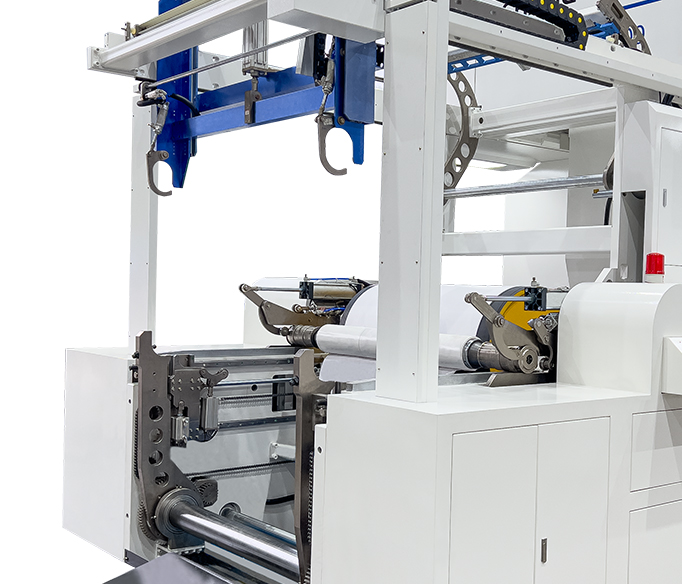

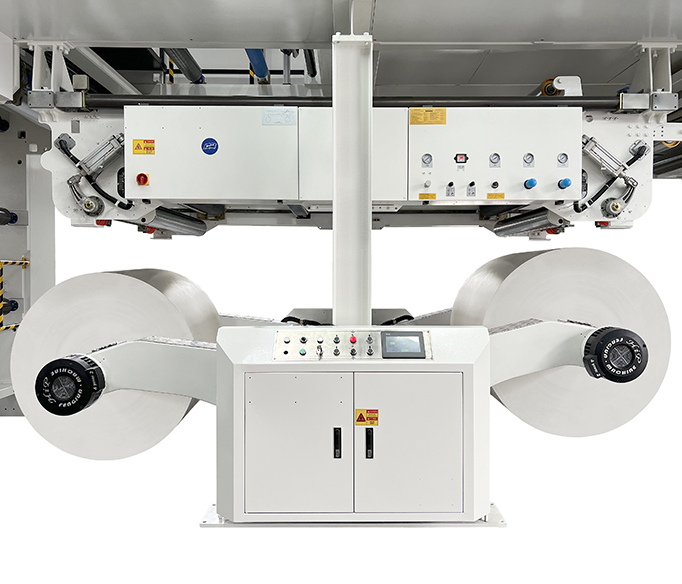

Machine details

Sample display

Gearless CI flexo printing press has a wide range of application materials and is highly adaptable to various materials, such as transparent film.non-woven fabric, paper, paper cups etc.
