CI PRINTING MACHINE FOR LABEL FILM

CI PRINTING MACHINE FOR LABEL FILM

CHCI-E Series

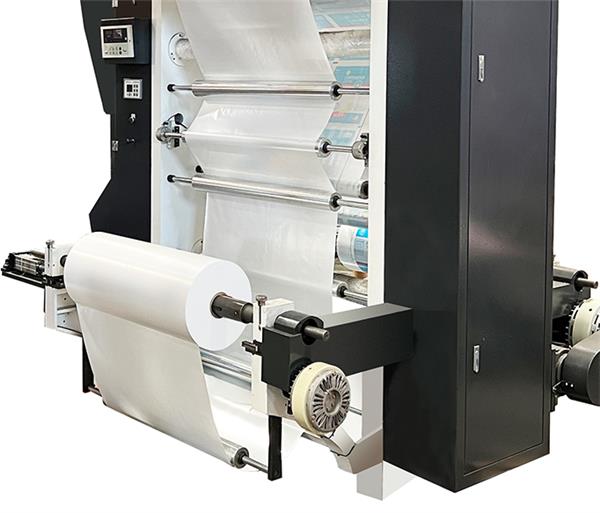

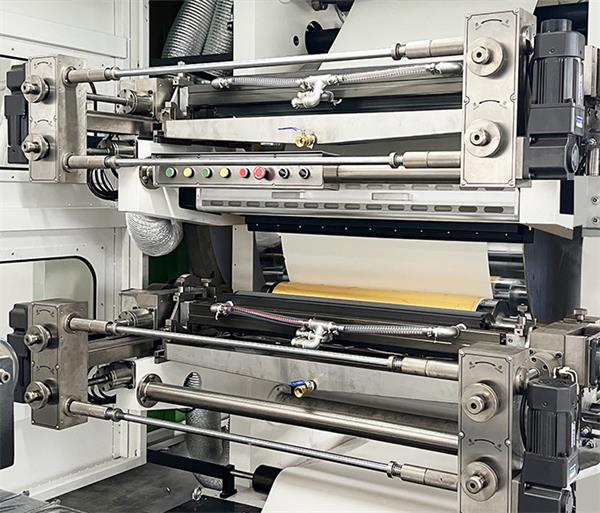

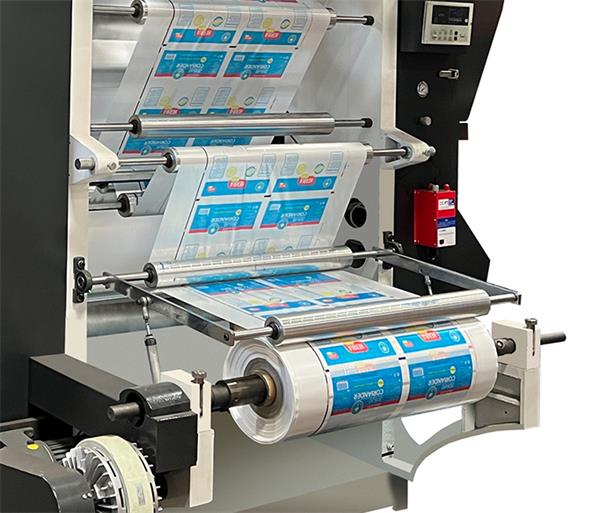

Central Drum Flexo Printing Machine is mainly composed of unwinding part, input part, printing part (CI type), drying and cooling part, connecting line” Printing and processing part, output part, winding or stacking part, control and management part and auxiliary equipment part.

TECHNICAL SPECIFICATIONS

Model CHCI-600J CHCI-800J CHCI-1000J CHCI-1200J
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Machine Speed 250m/min
Printing Speed 200m/min
Max. Unwind/Rewind Dia. Φ 800mm/Φ1200mm/Φ1500mm(Special size can be customized)
Drive Type Gear drive
Plate thickness Photopolymer plate 1.7mm or 1.14mm (or to be specified
Ink water based / slovent based / UV/LED
Printing length (repeat) 350mm-900mm (Special size can be customized)
Range Of Substrates Films; Paper; Non-Woven; Aluminium foil; Laminates
Electrical supply Voltage 380V. 50 HZ.3PH or to be specified
  • Machine Features

    (1) The substrate can pass multiple times on the impression cylinder at one time color printing.

    (2) Because the roll-type printing material is supported by the central impression cylinder, the printing material is tightly attached to the impression cylinder. Due to the effect of friction, the elongation, relaxation and deformation of the printing material can be overcome,  and the overprinting accuracy is ensured. From the printing process, the printing quality of the round flattening is the best.

    (3) Wide range of printing materials. The applicable paper weight is 28~700g/m. Applicable plastic film varieties are BOPP, OPP, PP, HDPE, LDPE, soluble PE film, nylon, PET, PVC, aluminum foil, webbing, etc. can be printed.

    (4) The printing adjustment time is short, the loss of printing materials is also less, and the raw materials are consumed less when adjusting the printing overprint.

    (5) The printing speed and output of the satellite flexo press are high.

  • High efficiencyHigh efficiency
  • Fully automaticFully automatic
  • Eco-friendlyEco-friendly
  • Wide range of materialsWide range of materials
  • 1
    2
    3
    4
    5
    6

    Sample display

    CI flexo printing press has a wide range of application materials and is highly adaptable to various materials, such as transparent film, non-woven fabric, paper, etc.
