PLASTIC FILM CI FLEXO PRINTNG MACHINE

PLASTIC FILM CI FLEXO PRINTNG MACHINE

CHCI-E Series

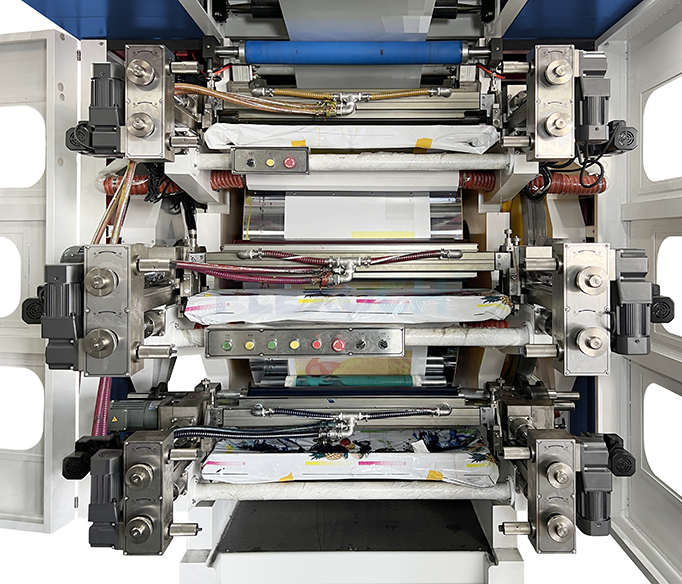

The ci flexo printing machine sometimes becomes a common embossed cylinder flexo printing machine. Each printing unit is installed between two wall panels around a common embossing cylinder. The printed material is used for color printing around normal embossing rolls. Due to the direct drive of the gears, whether it is paper or film, even without special control devices, it can still register accurately and the printing process is stable.

TECHNICAL SPECIFICATIONS

model

CHCI6-600E-S

CHCI6-800E-S

CHCI6-1000E-S

CHCI6-1200E-S

Max.Web Width

650mm

850mm

1050mm

1250mm

Max.Printing Width

600mm

800mm

1000mm

1200mm

Max.Machine Speed

350m/min

Max. Printing Speed

300m/min

Max.Unwind/Rewind Dia.

Φ800mm /Φ1000mm/Φ1200mm

Drive Type

Central drum with Gear drive
 Photopolymer Plate To be specified

Ink

Water base ink olvent ink

Printing Length (repeat)

350mm-900mm

Range Of Substrates

LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon,

Electrical Supply

Voltage 380V.50 HZ.3PH or to be specified
  • Machine Features

    1. The ceramic anilox roller is used to accurately control the amount of ink, so when printing large solid color blocks in flexographic printing, only about 1.2g of ink per square meter is required without affecting color saturation.

    2. Due to the relationship between the flexographic printing structure, ink, and amount of ink, it does not require too much heat to completely dry the printed job.

    3. In addition to the advantages of high overprinting accuracy and fast speed. It actually has a very big advantage when printing large-area color blocks (solid).

  • High efficiencyHigh efficiency
  • Fully automaticFully automatic
  • Eco-friendlyEco-friendly
  • Wide range of materialsWide range of materials
  • 1
    2
    3
    4
    5
    6

    Sample display

    CI flexo printing press has a wide range of application materials and is highly adaptable to various materials, such as transparent film, non-woven fabric, paper, etc.
